STM32F4 Serial Wire Trace Data Overflow

I'm trying to do execution profiling (or the nearest available equivalent) for an STM32F407, using a ULINK PRO and SWD + SWO (I don't have the available GPIO for the full parallel ETM function without chopping up the unit under test).

I have set up Keil uVision 5.40 with the ULINK PRO, and I have all the normal SWD functionality running.

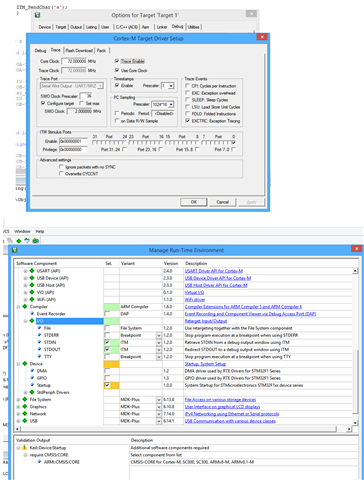

I have set up the debug configurations in the dbgconf and trace.ini files, and configured the target driver for the correct clock rate and data format per the ULINK PRO user guide. I have also freed the SWO pin from other usage.

When I run a debug session, I get a "Trace: Data Overrun" error that I cannot seem to configure my way around.

Note that I am not trying to send printf data through the SWO port, just trying to get whatever level of performance analysis that SWO will support.

Any clues here? What additional information would I get through the SWV function that I cannot already see, and what other steps might I be missing?

Thanks,

Steve Hersey

Here are my trace.ini and debugconf settings:

TRACE.INI:

/*-------------------------------------------------------------------

** Define the function to enable the trace port
**-----------------------------------------------------------------*/
FUNC void EnableTPIU(void) {

_WDWORD(0xE0042004, 0x00000027); // Set asynchronous communication via DBGMCU_CR
}

/*-------------------------------------------------------------------
** Invoke the function at debugger startup
**-----------------------------------------------------------------*/
EnableTPIU();

DEBUGCONF:

// File: STM32F405_415_407_417_427_437_429_439.dbgconf
// Version: 1.0.0
// Note: refer to STM32F405/415 STM32F407/417 STM32F427/437 STM32F429/439 reference manual (RM0090)
// refer to STM32F40x STM32F41x datasheets
// refer to STM32F42x STM32F43x datasheets

// <<< Use Configuration Wizard in Context Menu >>>

// <h> Debug MCU configuration register (DBGMCU_CR)
// ENABLE TRACESWO
// <o.2> DBG_STANDBY <i> Debug Standby Mode
// <o.1> DBG_STOP <i> Debug Stop Mode
// <o.0> DBG_SLEEP <i> Debug Sleep Mode
// </h>
DbgMCU_CR = 0x00000027;

// <h> Debug MCU APB1 freeze register (DBGMCU_APB1_FZ)
// <i> Reserved bits must be kept at reset value
// <o.26> DBG_CAN2_STOP <i> CAN2 stopped when core is halted
// <o.25> DBG_CAN1_STOP <i> CAN2 stopped when core is halted
// <o.23> DBG_I2C3_SMBUS_TIMEOUT <i> I2C3 SMBUS timeout mode stopped when core is halted
// <o.22> DBG_I2C2_SMBUS_TIMEOUT <i> I2C2 SMBUS timeout mode stopped when core is halted
// <o.21> DBG_I2C1_SMBUS_TIMEOUT <i> I2C1 SMBUS timeout mode stopped when core is halted
// <o.12> DBG_IWDG_STOP <i> Independent watchdog stopped when core is halted
// <o.11> DBG_WWDG_STOP <i> Window watchdog stopped when core is halted
// <o.10> DBG_RTC_STOP <i> RTC stopped when core is halted
// <o.8> DBG_TIM14_STOP <i> TIM14 counter stopped when core is halted
// <o.7> DBG_TIM13_STOP <i> TIM13 counter stopped when core is halted
// <o.6> DBG_TIM12_STOP <i> TIM12 counter stopped when core is halted
// <o.5> DBG_TIM7_STOP <i> TIM7 counter stopped when core is halted
// <o.4> DBG_TIM6_STOP <i> TIM6 counter stopped when core is halted
// <o.3> DBG_TIM5_STOP <i> TIM5 counter stopped when core is halted
// <o.2> DBG_TIM4_STOP <i> TIM4 counter stopped when core is halted
// <o.1> DBG_TIM3_STOP <i> TIM3 counter stopped when core is halted
// <o.0> DBG_TIM2_STOP <i> TIM2 counter stopped when core is halted
// </h>
DbgMCU_APB1_Fz = 0x00000000;

// <h> Debug MCU APB2 freeze register (DBGMCU_APB2_FZ)
// <i> Reserved bits must be kept at reset value
// <o.18> DBG_TIM11_STOP <i> TIM11 counter stopped when core is halted
// <o.17> DBG_TIM10_STOP <i> TIM10 counter stopped when core is halted
// <o.16> DBG_TIM9_STOP <i> TIM9 counter stopped when core is halted
// <o.1> DBG_TIM8_STOP <i> TIM8 counter stopped when core is halted
// <o.0> DBG_TIM1_STOP <i> TIM1 counter stopped when core is halted
// </h>
DbgMCU_APB2_Fz = 0x00000000;

// <<< end of configuration section >>>
