Definitive Guide to Arm Cortex-M23 and Cortex-M33 Processors, 1st edition
Figure 4.1
"Cortex-4" should be "Cortex-M4"
Typo near top of the page "The PRIMASK, FAULTMASK, and BASEPRI registers:"
PRIMARK -> PRIMASK
Typo in the code near top of the page (PRIMARK -> PRIMASK):
x = __get_BASEPRI(); // Read BASEPRI registerx = __get_PRIMASK(); // Read PRIMASK registerx = __get_FAULTMASK(); // Read FAULTMASK register
Table 4.4
Two typos in SPSEL description:
"Stack Pointer select - Selects between Main Stack Pointer (MSP) or Process Stack Pointer (PSP) in Thread mode:
- If this bit is 0 (default), the MSP is selected.
- if this bit is 1, the PSP is selected.
In Handler mode, the MSP is always selected and this bit is 0 - writing to this bit is ignored."
Section 4.2.4
Typo in the following line: "-Secure stack pointers (MPS_S, PSP_S)" MPS_S should be MSP_S.
Section 4.3.1 Memory Map
By default, the 4GB address space of Cortex-M processors is partitioned into a number of memory regions, as shown in Fig. 4.21.
should be
By default, the 4GB address space of Cortex-M processors is partitioned into a number of memory regions, as shown in Fig. 4.19.
Table 5.22, last row. "Read" should be "Write".
STRD Rt, Rt2, [Rn, #imm8]
Doubleword write
memory[Rn+imm8<<2]= {Rt2,Rt}
Address must be word aligned.
-1020 <= Offset <=1020
Table 5.23, last 3 rows. "Read" should be "Write".
STR Rt, [SP, #offset]
Word write. memory[SP+#imm12]=Rt
Not available in Armv8-M baseline.
-255 <= offset <= 4095
STRH Rt, [SP, #offset]
Halfword write. memory[SP+#imm12]=Rt
STRB Rt, [SP, #offset]
Byte write. memory[SP+(#imm8<<2)]=Rt
Table 5.38, first row.
LDAEXB Rt, [Rn]
Reads byte with an exclusive access from memory location Rn
Rt = memory[Rn]
Rt must not be SP/PC
Rn must not be PC
Third row
LDAEX Rt, [Rn]
Reads word with an exclusive access from memory location Rn
Same as above
Table 5.47. In SXTH and UXTH, "byte" should be "half word"
Instruction
Description
Restriction
SXTB Rd, Rm
Signed extend byte data into word
Rd = signed_extend(Rm[7:0])
Rd and Rm are low registers only
SXTH Rd, Rm
Signed extend half word data into word
Rd = signed_extend(Rm[15:0])
UXTB Rd, Rm
Unsigned extend byte data into word
Rd = unsigned_extend(Rm[7:0])
UXTH Rd, Rm
Unsigned extend half word data into word
Rd = unsigned_extend(Rm[15:0])
Table 5.48. In SXTH and UXTH, "byte" should be "half word", and the source register bit fields for the UXTH instruction are incorrect. The correct descriptions are as follow:
SXTB Rd, Rm {,ROR #n}
(n = 0/ 8 / 16/ 24)
Sign extend byte data into word
Rd = sign_extend(Rm[7:0]) ; no rotate
Rd = sign_extend(Rm[15:8]) ; n = 8
Rd = sign_extend(Rm[23:16]) ; n = 16
Rd = sign_extend(Rm[31:24]) ; n = 24
SXTH Rd, Rm {,ROR #n}
(n = 0 / 8 / 16/ 24)
Sign extend half word data into word
Rd = sign_extend(Rm[15:0]) ; no rotate
Rd = sign_extend(Rm[23:8]) ; n = 8
Rd = sign_extend(Rm[31:16]) ; n = 16
Rd = sign_extend(Rm[7:0], Rm[31:24]) ; n = 24
UXTB Rd, Rm {,ROR #n}
Unsign extend byte data into word
Rd = unsign_extend(Rm[7:0]) ; no rotate
Rd = unsign_extend(Rm[15:8]) ; n = 8
Rd = unsign_extend(Rm[23:16]) ; n = 16
Rd = unsign_extend(Rm[31:24]) ; n = 24
UXTH Rd, Rm {,ROR #n}
Unsign extend half word data into word
Rd = unsign_extend(Rm[15:0]) ; no rotate
Rd = unsign_extend(Rm[23:8]) ; n = 8
Rd = unsign_extend(Rm[31:16]) ; n = 16
Rd = unsign_extend(Rm[7:0], Rm[31:24]) ; n = 24
Table 5.60, first row (table header), "true" should be "then"
IT block (each of <x>, <y> and <z> can either be T (then) or E (else)
Figure 5.18. Typo in the label on top left
"PC (address of the TBB instruction)" should be "PC (address of the TBH instruction)"
Typo in 5.16.2 : CPACR Address in the following bullet "0xE002ED880" should be "0xE002ED88"
The Non-secure version of the CPACR can be accessed by both Secure and Non-securesoftware. Secure software can access this register using the Non-secure alias address(SCB_NS->CPACR at address 0xE002ED88) and Non-secure software can access thesame register using SCB->CPACR at address 0xE000ED88.
Table 5.72 "Accumulate" in the description of VNMLS should be Subtract.
Table 5.80 Description of MCRR and MCRR2 is incorrect.
It should be "Transfers 64 bits from two processor registers to a coprocessor register (opcode 1 is 4 bits)"
Table 6.4
For "Devices (0xC0000000 - 0xDFFFFFFF)", the second column (Memory/Device type) should be "Device-nGnRE".
8.4.3 (above starting of 8.4.4)
The PC would also be updated to the starting address of the exception handler and the LR would be updated with a special value, calledEXC_RETURN (see Section 8.10).
Table 8.12
Missing “Non-secure” in the register name in the last row:
16-495
Interrupt #0 - #479
NVIC Interrupt Target Non-secure State Register (ITNS)
Middle of the page
"As shown in Table 9.3, the IRQn_Type uses negative values for system exceptions, value zero and positive values for interrupts."
(Technically 0 is not classified as a positive number hence the correction).
Last paragraph above table 9.10. Copy and paste error:
"CMSIS-CORE provides the following functions for accessing the Interrupt Target Non-secure registers:"
Table 9.15
System Handler Priority Registers:Register symbol SHP should be SHPR.
SCB->SHP[0] to SCB->SHP[1] or SCB->SHP[11] should be SCB->SHPR[0] to SCB->SHPR[1] or SCB->SHPR[11]
------
"Handle" -> "Handler" in SHCSR description
0xE000ED24 | System Handler Control and State Register | SCB->SHCSR | For controlling fault exceptions (e.g., enable / disable) and for the status of system exceptions.
Section 9.3.3 heading:
System Handler Priority Registers (SCB->SHB[n]) should be
System Handler Priority Registers (SCB->SHBR[n])
Typo (PRIMARK -> PRIMASK) in the following:
"Please note, the masked priority levels of the Non-secure PRIMASK_NS, FAULTMASK_NS, and BASEPRI_NS (is) are affected by the PRIS (Prioritize Secure Exceptions)control bit in the Application Handler Control and State Register (AIRCR.PRIS)."
In the following paragraph in section 9.4.1:
"When using interrupt masking registers when writing software, instead of just setting aninterrupt masking register before entering the critical code and clearing the register afterward,it is often necessary to use a read-modify-write sequence."
"read-modify-write" should be changed to "save-operate-restore".
Section 10.2.3, typo in 4th paragraph: "SCB_NS->SCB" should be "SCB_NS->SCR"
"When TrustZone is implemented, Secure privileged software is also able to access the Non-secure privileged view of this register using SCB_NS->SCR (address 0xE002ED10)."
10.4.2.6 Ambiguous sentence:
"For example, if you use a voltage source with a higher voltage than required you will need to reduce the voltage and, by so doing, often waste power."
should be changed to:
"For example, if you use a voltage source with a higher voltage than required, you will need to reduce the voltage. Otherwise, the system could be wasting power."
10.4.2.10: "Skew" should be "slew"
"Some microcontrollers have programmable I/O port options to control the drive strength (i.e. the electrical current supported by the I/O pins on the chip) and the slew rate. Depending on the devices connected to the I/O pins, the power consumption of the I/O interface logic can be reduced by having a lower drive strength or a slower slew rate configuration. "
Table 10.7 fourth row
SCB->SHP[n] should be SCB->SHPR[n]
Table 10.7 last row
The register name should be System Handler Control and State Register,
Table 10.8
Section 10.5.5.3 Typo in CCR - BFHFNMIGN bit description
"MemMenage fault" should be "MemManage fault"
Table 10.13, description for EXTEXCLALL - Only value of 0 is the default. Value of 1 isn't.
"When this bit is 0 (default), only the exclusive access to the sharable memory can utilize the exclusive access sideband signals (this enables the use of a global exclusive access monitor, see Section 6.7).When this bit is 1, all exclusive access utilizes the exclusive access sideband signals."
Table 10.13
Row 4 (below EXTEXCLALL): bit 38:13 should be 28:13
Section 11.2.3.4 Typo in code. ("!=" should be "==" in the line that "Waits until the SysTick is reloaded)
unsigned int start_time, stop_time, cycle_count; SysTick->CTRL = 0; // Disables SysTick SysTick->LOAD = 0xFFFFFFFF; // Sets the Reload value to maximum SysTick->VAL = 0; // Clears the current value to 0 SysTick->CTRL = 0x5; // Enables the SysTick, uses the processor clock while(SysTick->VAL == 0); // Waits until the SysTick is reloaded start_time = SysTick->VAL; // Obtains the start time function(); // Executes the function to be measured stop_time = SysTick->VAL; // Obtains the stop time cycle_count = start_time – stop_time; // Calculates the time taken
Section 11.3.3, there is a typo in the 2nd bullet, MSP should be PSP:
“In devices where there are multiple RAM regions that are not continuous you can configure the thread stack (using PSP) to one RAM region and the Handler stack to another.”
Table 11.9 Several typos in the descriptions. Corrected version below:
Function
void __set_MSPLIM(uint32_t MainStackPtrLimit)
Sets the MSPLIM of the current security domain
uint32_t __get_MSPLIM(void)
Returns the MSPLIM of the current security domain
void __set_PSPLIM(uint32_t ProcStackPtrLimit)
Sets the PSPLIM of the current security domain
uint32_t __get_PSPLIM(void)
Returns the PSPLIM of the current security domain
void __TZ_set_MSPLIM(uint32_t MainStackPtrLimit)
Sets the MSPLIM_NS (available to Secure software only)
uint32_t __TZ_get_MSPLIM(void)
Returns the MSPLIM_NS (available to Secure software only)
void __TZ_set_PSPLIM(uint32_t ProcStackPtrLimit)
Sets the PSPLIM_NS of the current security domain (available to Secure software only)
uint32_t __TZ_get_PSPLIM(void)
Returns the PSPLIM_NS (available to Secure software only)
"Translation Lookup Buffer (TLB)" should be "Translation Lookaside Buffer (TLB)"
Section 12.2.5, typo in Non-shareable description:
Non-shareable: An update of data in a Non-shareable region by CPU #0 is not alwaysobservable by any other bus masters in the system. This has the benefit of achieving ahigher performance, but if, at some stage, the data needs to be accessed by other busmaster(s), a software operation, such as cache clean, will be needed.
Near top of the page, there is missing text in the last bullet:
"Lockups can occur if:
Section 14.2.2
In the sentence below, Fig. 14.3 should be Table 14.3.
When the TrustZone® security extension is implemented, Secure software has access to the Non-secure view of those registers, listed in Table 14.3, via the Non-secure address alias 0xE002Exxx.
Figure 14.15: Bit 6 (BFRDY) is missing from the figure.
Section 14.2.7, Table 14.8 FPCCR description.
Description of TS (Treat as Secure) bit unclear. Improved version as follows:
Bits
Name
Type
Reset value
26
TS
Treat as Secure.Treats Floating-point registers as Secure enable:- When 0 ( i.e., default), the data in the FPU is treated as Non-secure even when Secure software is using the FPU.- When 1, all data in the FPU in the current context is treated as Secure when Secure software is using the FPU.
The description of S (bit S) has one issue - type should be R (read only)
The description of USER (bit 1) has two issues:
Beginning of section 14.4.4. "interrupt code" should be "interrupted code"
"If the interrupted code has a floating-point context and there is a floating-point operation inside the ISR, the deferred lazy stack process has to be carried out. ...."
Figure 14.24
Error in the CONTROL.FPCA after the exception return of the higher priority interrupt. The value of this bit should stay high because the first ISR has previously used the FPU. The correct diagram is shown below.
Table 16.18: Incorrect prefix for register symbols for two registers.
Table 16.31: Incorrect Non-secure alias address for ITM Trace Control Register andIncorrect prefix for register symbols for two registers.
Typo in the following text (unit32_t should be uint32_t) :
To assist software development, the CMSIS-CORE provides a function, as detailed below,for handling text messages using the ITM stimulus port:
uint32_t ITM_SendChar (uint32_t ch)
In the example code in section 18.6.5.1
The comments in the following code segment w swapped.
// Secure base addresses
#define IOTKIT_SECURE_UART0_BASE (0x50200000UL)
#define IOTKIT_SECURE_UART1_BASE (0x50201000UL)
...
// Non-secure base addresses
#define IOTKIT_UART0_BASE (0x40200000UL)
#define IOTKIT_UART1_BASE (0x40201000UL)
// Secure peripheral pointers
// Non-secure peripheral pointers
#define IOTKIT_UART0 ((IOTKIT_UART_TypeDef *) IOTKIT_UART0_BASE )
#define IOTKIT_UART1 ((IOTKIT_UART_TypeDef *) IOTKIT_UART1_BASE )
#define IOTKIT_SECURE_UART0 ((IOTKIT_UART_TypeDef *) IOTKIT_SECURE_UART0_BASE )
#define IOTKIT_SECURE_UART1 ((IOTKIT_UART_TypeDef *) IOTKIT_SECURE_UART1_BASE )
Typo at bottom of page: "Intellectualy Property" should be "Intellectual Property"
Bottom of the page: "the setting of LSB in branch targets is handled by the compiler automatically" should be "the setting of LSB in branch targets is handled by the development toolchain automatically"
(Note: In some tool chains this is handled by linker, and in some cases, e.g. gcc, the compiler invoke the linker and therefore the linking stage is hidden. So it is better to generalize by stating the toolchain handle this automatically.)
Typo at middle of page ("ERSR" should be "EPSR"):
The EPSR cannot be accessed by software code directly using MRS (read as
zero) or MSR
Table 4.7, second row
0x90000000 + 0x90000000, result should be 0x20000000 (not 0x30000000)
The list of instruction that can set Q bit are QADD, QDADD, QSUB, QDSUB, SSAT, SSAT16, USAT, USAT16. Some other instructions start with Q (QADD8, QADD16, QASX, QSUB8, QSUB16, QSAX) and all instructions starting with UQ (UQADD8, UQADD16, UQSUB8, UQSUB16, UQASX, UQSAX) do not change the Q bit.
Therefore the statement should be changed to:
"In most cases, the instructions for saturation arithmetic are mnemonic starting with “Q,” for example “QADD16". If saturation occurred, the Q bit is set for the following instructions - QADD, QDADD, QSUB, QDSUB, SSAT, SSAT16, USAT, USAT16; otherwise, the value of the Q bit is unchanged."
4.3.3, first paragraph (or -> of)
For SIMD instructions with 16-bit data, bit 0 and bit 1 are controlled by the result of lower half-word, and bit 2 and bit 3 are controlled by the result of upper half-word.
Figure 4.20, the order of POP instructions should be inverted of the order in PUSH. The corrected diagram is shown below:
Figure 4.26: Value in address 0x00 "Initial value of MPS" should be "Initial value of MSP"
Figure 4.26: Typo on BusFault row, exception type should be 5, not 4.
Table 5.1: The directive for inserting instructions in GNU Assembler should be
".inst / .inst.n / .inst.w
E.g., .inst.n 0xBE00"
In the paragraph under table 5.6
For example, if 0x83 is read in a LDRSB instruction, the value is converted into 0xFFFFFF83 before being placed in the destination register.
In the third paragraph in page 136 it should be
"If the floating point unit is present, the instructions in Table 5.10 are also available to perform LDR and STR operations to the registers in the floating point unit."
On Page 136, in the third paragraph, "cannot be used with R15(PC) or R14(SP)."
should be "... or R13(SP)."
On Page 139, in the fourth paragraph, "cannot be used with R15(PC) or R14(SP)."
Table 5.16: The text in the description column reference "Rd", instead of "Rn".
Table 5.17, first column header
"Example of Stack Operation" should be "Example of Multiple Load / Store for FPU registers".
Table 5.24, errors in comments for last two EOR instructions in the table
EOR Rd, Rn,#immed ; Rd = Rn ^ #immed
EOR Rd, Rn, Rm ; Rd = Rn ^ Rm
REV16 mistyped as REVH:
REV reverses the byte order in a data word, and REV16 reverses the byte order inside a half-word. For example, if R0 is 0x12345678, in executing the following:
REV R1, R0
REV16 R2, R0
R1 will become 0x78563412, and R2 will be 0x34127856
REVSH is similar to REV16 except that it only processes the lower half-word and then sign extends the result. For example, if R0 is 0x33448899, running:
REVSH R1, R0
R1 will become 0xFFFF9988.
Example for RBIT does not match descriptions:
For example, if R0 is 0xB4E10C23 (binary value 1011_0100_1110_0001_0000_1100_0010_0011), executing:
RBIT R0, R0
R0 will become 0xC430872D (binary value 1100_0100_0011_0000_1000_0111_0010_1101).
Table 5.30, error in the operation descriptions in last two rows (AND should be XOR)
TEQ <Rn>, <Rm>
Test (bitwise XOR): Calculate XOR result between Rn and Rm. N bit and Z bit in APSR are updated but the XOR result is not stored. C bit can be updated if barrel shifter is used.
TEQ <Rn>, #<immed>
Test (bitwise XOR): Calculate XOR result between Rn and immediate data. N bit and Z bit in APSR are updated but the XOR result is not stored
Table 5.35 ("then" should be "than")
GT Signed greater than Z flag is cleared, and either both N flag and V flag are set, or both N flag and V flag are cleared (Z == 0 and N == V)
Table 5.49
Foot note 2 "Q bit is set when saturation occurs" is incorrect. This should be corrected to
"These instructions do not set Q bit."
Table 5.53
Q bit is not set for the following instructions: QADD8, QADD16, QASX, QSUB8, QSUB16, QSAX,
UQADD8, UQADD16, UQSUB8, UQSUB16, UQASX, UQSAX
Table 6.6 Data on AHB bus for ARM7TDMI
Typo in BITBAND macro in the bottom of the page
#define BIT BAND(addr,bitnum) ((addr & 0xF0000000)+0x02000000+((addr & 0xFFFFF)<<5)+(bitnum<<2))
Section 6.9 Memory access attributes
Last sentence in page 218 should be
"The Cacheable and Bufferable attributes are usually used by a cache controller, which specifies memory types and caching scheme, as shown in Table 6.11."
Table 7.9 CMSIS-Core symbol for Interrupt Priority Registers should be "IP", not "IR"
NVIC->IP[0] to NVIC->IP[239]
Table 7.17 Width of VECTPENDING and VECTACTIVE incorrect.
20:12 VECTPENDING
8:0 VECTACTIVE
Bit 21 and bit 9 are reserved.
(Same issue for page e130, table F.9)
7.10.1 PRIMASK
Typo near middle of the page: "PRIMARK" should be "PRIMASK"
"In assembly language programming, you can change the value of PRIMASK register using CPS (Change Processor State) instructions:"
Errors in exclusive access example code for CMSIS-CORE - No need to have "&" in front of variable when using __LDREX and __STREX functions. For example,
__LDREXW(&Lock_Variable) should have been __LDREXW(Lock_Variable)
and
should have been
status = __STREXW(1, Lock_Variable);
Table 9.8, reset value of SysTick Reload Value Register, and table 9.9, reset value of SysTick Current Value Register:
In the architecture definition (ARMv7-M), the reset value of these two registers are unknown. However, in the actual implementation (in the current Cortex-M3 and Cortex-M4 processor designs), these two registers are reset to 0.
Therefore the reset values in these two table should be changed to unknown, with a footnote added to these two tables : " * Architecturally the reset values is unknown, but in actual processor design the register is reset as 0. But this is not guarantee that it will be the same in future versions."
Typo in comments in example code (near middle of page)
"ISB ; Execute and ISB after updating CONTROL" should be
"ISB ; Execute an ISB after updating CONTROL"
In example code
B __cpp(SVC_Handler_C)
B __cpp(SVC_Handler_main)
"For a system with only two tasks, the two tasks are executed alternatively, as shown in Figure 10.6."
"For a system with only two tasks, the two tasks are executed alternately, as shown in Figure 10.6."
SVC with priority escalation lead to HardFault, not Usage Fault.
"Because of the exception priority model, you cannot use SVC inside an SVC handler (because the priority us the same as the current priority). Doing so will result in a HardFault exception. For the same reason, you cannot use SVC in the NMI handler or the HardFault handler."
"If the MPU is not enabled, the processor no MPU is present."
"If the MPU is not enabled, it behaves as the processor has no MPU."
In C example, function "mpu_enable(uint32_t options)", there is a typo in the comment
void mpu_enable(uint32_t options)
{
MPU->CTRL = MPU_CTRL_ENABLE_Msk j options; // Enable the MPU
__DSB(); // Ensure MPU settings take effects
__ISB(); // Sequence instruction fetches using update settings
return;
}
Figure 11.6. Text in diagram has incorrect SRD values:
Task A's SRD should be 11100000
Task B's SRD should be 00000011
Table 11.2, Clarification in "Registers accesses"
Please note that in Cortex-M7 processors, the MPU registers are word access only. Half word and Byte accesses are supported in Cortex-M3 and Cortex-M4 but this is not an architectural requirement.
The Usage Fault exception can be caused by a wide range of factors:
"Execution of SVC when the priority Level of the SVC is the same or lower than current Level "
this scenario lead to a HardFault not a Usage Fault.
Section 12.4.5, first sentence should be:
"The programmer's model for the HardFault Status Register is shown in Table 12.6."
the code at the top:
mrseq r0, msp
mrseq r0, psp
should be:
mrsne r0, psp
Section 13.2, table 13.7 FPCCR description.
Section 13.2.8, typo in 2nd paragraph:
FPFSCR should be FPDSCR.
Typo near bottom of the page:
"For readers who would like to have a brief verview" -- should be overview.
Figure 14.7
Second block on the botton left should be labelled ITM, not DWT.
Table 14.9, PID0 value in ROM table 0xC3 is only valid for Cortex-M3,
For Cortex-M4 it is 0xC4.
First line of section "20.4.3 Accessing special registers" contains outdated information:
"In the GNU toolchain, when accessing the special registers in assembly code, the name of the special registers must be in lower case". This is no longer the case, and has been fixed since 2007. See: Paul Brook - ARM uppercase MSR names
Therefore the text should be changed to : "In recent version of the GNU toolchain, when accessing the special registers in assembly code, the name of the special registers can be in ether lower case or upper case, but not a mixture of lower/upper case."
gcc inline assembly section - bottom of the page.
"In the code example, %0 is the first input parameter and %1 is the first output parameter." This sentence should be changed to "In the code example, %0 is the output parameter and %1 is the input parameter."
More discussions about this error is here.
Section 22.3, typo in description of q7
The illustration in Figure 23.4 mistakenly showing priority level of user (unprivileged) interrupt handler execute at user thread. While it is execute at user permission, priority level should be the same as the interrupt.
Example for re-entrant interrupt handler.
Two addition steps might be needed
1) to prevent a new re-entrant interrupt being triggered just before execution of SVC (I am still doing more check in this). To avoid the potential issue, set BASEPRI to the same level as the re-entrant interrupt (e.g. SysTick in this case) before SVC and clear BASEPRI inside the SVC Handler:
2) for Cortex-M4 with FPU, also need to trigger the deferred lazy stacking
__asm void SysTick_Handler(void)
#if (__CORTEX_M >= 0x04)
#if (__FPU_USED == 1)
; The following 3 lines are for Cortex-M4 with FPU only
TST LR, #0x10 ; Test bit 4, if zero, need to trigger stacking
IT EQ
VMOVEQ.F32 S0, S0 ; Trigger lazy stacking stacking
#endif
; Now we are in Handler mode, using Main Stack, and
; SP should be Double word aligned
MRS R0, PSR
PUSH {R0, LR} ; Need to save PSR and LR in stack
SysTick_Handler_thread_pt
BL __cpp(Reentrant_SysTick_Handler)
; Block SysTick from being triggered just before SVC
LDR R0,=0xE000ED23 ; Address of SysTick priority level
LDR R0,[R0]
MSR BASEPRI, R0 ; Block SysTick from being triggered
ISB ; Instruction Synchronisation Barrier
SVC 0 ; Use SVC to return to original Thread
B . ; Should not return here
__asm void SVC_Handler(void)
MOVS R0, #0
MSR BASEPRI, R0 ; Enable SysTick again
; Extract SVC number
TST LR, #0x4 ; Test EXC_RETURN bit 2
ITE EQ ; if
Please also note that the current code can only work if the re-entrant interrupt has the lowest priority compared to other interrupt sources.
Appendix A (A.2)
Figure B.55 - Caption of the figure should be SMLALDX
Figure B.60 - incorrect add / subtract path. It should be:
Figure B.61, incorrect data routing in illustration. It should be
Figure B.88 - Q bit is not set by UQASX

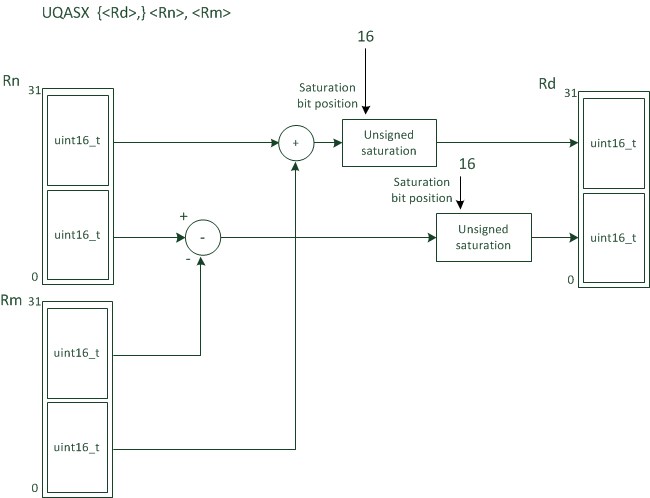

Wrong diagram used - QASX rather then UQASX. The correct one is as below:
Table F.28, reset value of SysTick Reload Value Register, and table F.29, reset value of SysTick Current Value Register:
Note: Due to the size of the book, the publisher had decided to remove the appendix in paper copies and put it on the web. This is now available for download on the Elsevier's website.
Table 4.21 text alignment issues:
"ASRRd, Rn" should be "ASR Rd, Rn"
"LSLRd, #immed" should be "LSL Rd, #immed"
"LSLRd, Rn" should be "LSL Rd, Rn"
Section 8.3 code example to set the priority to 0xC0:
NVIC_SetPriority(7, 0xC0) should have been
NVIC_SetPriority(7, 0xC)
Note: The CMSIS call internally shift the priority level to implemented bits.
Table 8.12 SYSTICK Calibration Value Register
TENMS field should be RO (read only), not R/W (read/write)
Example code (int LockDeviceA(void)):
if (__LDREXW(&DeviceALocked) = 0) {
Should be
if (__LDREXW(&DeviceALocked) == 0) {
Foot note for table 15.2
"The control bit in DHCSR..." should be "The control bit in DEMCR..."
Section 19.6 Using unsupported instructions
".word" should be changed to ".inst"
The following description of carry bit is incorrect:
"A carry occurs
• If the result of an addition is greater than or equal to 2^32
• If the result of a subtraction is positive or zero
• As the result of an inline barrel shifter operation in a move or logical instruction."
The correct description is:
"C is set in one of four ways:
(Note: this error originated from ARM documentation - a defect has been raised)
Table D.6 SYSTICK Calibration Value Register
Table D.23 Usage Fault Status Register
UNALIGNED bit description. The text said it can only be set if UNALIGN_TRP is set. This is incorrect. It can be set if an unaligned transfer is attempted for instructions that doesn't support unaligned transfers (e.g. LDMIA/STMIA).
Most of the most issues found are documented in this PDF.. Please so see the errors in the second edition.
gcc inline assembly section - text after example code.
(to be added)
Table 3.2, second row
Typo in equations:
// Calculating Z = X + Y, where X, Y and Z are all 64-bit
Z[31:0] = X[31:0] + Y[31:0]; // Calculate lower word addition, carry flag get updated
Z[63:32] = X[63:32] + Y[63:32] + Carry; // Calculate upper word addition
Table 4.4, end of row 2 (<device>.h) descriptions:
"The actual filtername depends on the device." should be "The actual filename depends on the device."
Notes for PUSH instructions incorrectly described register layout ordering.
For PUSH {<Ra>, <Rb>,...} instruction:
SP is first updated to new SP value, and then:
memory[new_SP ] = Ra,
memory[new_SP+4] = Rb,
(The order of the register content is based on register's number, i.e. Lower register is push to the lower address in the stack).
Figure 6.8 - On page 121 in figure 6.8 "simple unsigned integer square root function" the diagram shows that when the check for "N = 0" fails the flow returns to "M = 0" which is incorrect. The program flow should loop around to the step labelled "M = M + N". (Thanks Brendan M for pointing this out).
Last line of this page, the abbreviation of Write Back Write Allocate should be WBWA, not WBWT.
Figure 8.3:
Typo in vector table : "Had Fault vector" should be "HardFault Vector"
Figure 9.4 : Wrong diagram - It is duplicated from figure 9.3. The correct image should be:
Figure 9.4 : Interrupt pending status is cleared and is not taken by the processor.
At the bottom of the page, the last statement is incorrect. The correct descriptions should be:
"The SysTick Calibrate Value Register can be used to provide information for calculating the desired reload value for the SysTick. If a timing reference is available on the microcontroller, the TENMS field in the register may provide the tick count for 10 milliseconds. In some Cortex-M0 microcontrollers a reference value is not available. Also some microcontrollers do not have an external reference clock source for the SysTick timer, in such case the NOREF bit is set to one to reflect this."
Example code for putting LPC1114 in low power mode.
The bit definition for LPC_SYSCON->PDSLEEPCFG is wrong in the code. You can program it as:
LPC_SYSCON->PDSLEEPCFG = 0x000018BF; // WD osc on, BOD off
Hello,Joseph Yiu
in PAGE 161
If “AL” is used as <cond>, then you cannot use “E” in the condition control as itimplies the instruction will never be executed.
however , I didn't find any AL condition in context, is it anything wrong with this description.
thank you
In the Cortex-M3 2nd edition on page 39, should the SP not be pointing at the last occupied location after the "POP"?
Thanks,
Ron
Hi Joseph,
It is a nice experience reading your in-depth book "The definitive guide to ARM Cortex - M3 and Cortex-M4 Processors" 3rd edition
while I was reading the chapter 9.2 at page 306 - some qustion about sample code came into my mind.
Here it is
void free_lock(volatile int * Lock_Variable){__DMB(); // Data memory Barrier (1)Lock_Variable = 0; // Free the lock (2)return;}
My questions are
(1) can this one be put after (2)
(2) is it better to use __STREXW(0, Lock_Variable);
Regards,
Lei
In the Cortex-M3 book (3rd edition), there is a typo on page 192 (arm instead of asm):
register type var-name __arm(reg)
Julio
I have read your book and it saved me a lot of time researching about ARM architecture. I think is a wonderful all-in-one guide about ARM Cortex - M Architecture.
Regarding the book, I think I have found a typo in page 278, Table 8.1. I think value of bits 27:5 must be 0xFFFFFE instead of 0xEFFFFF.
Best regards
